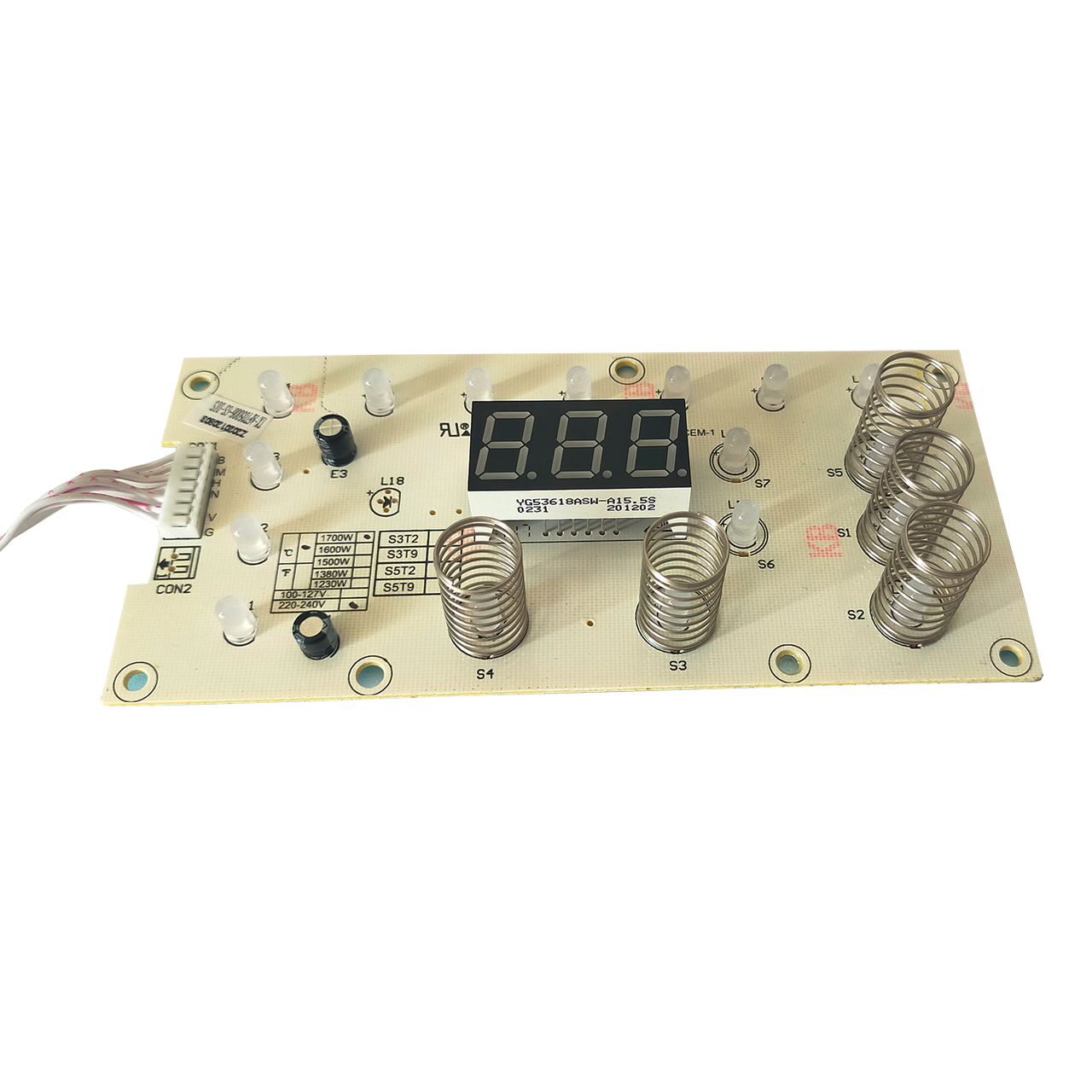

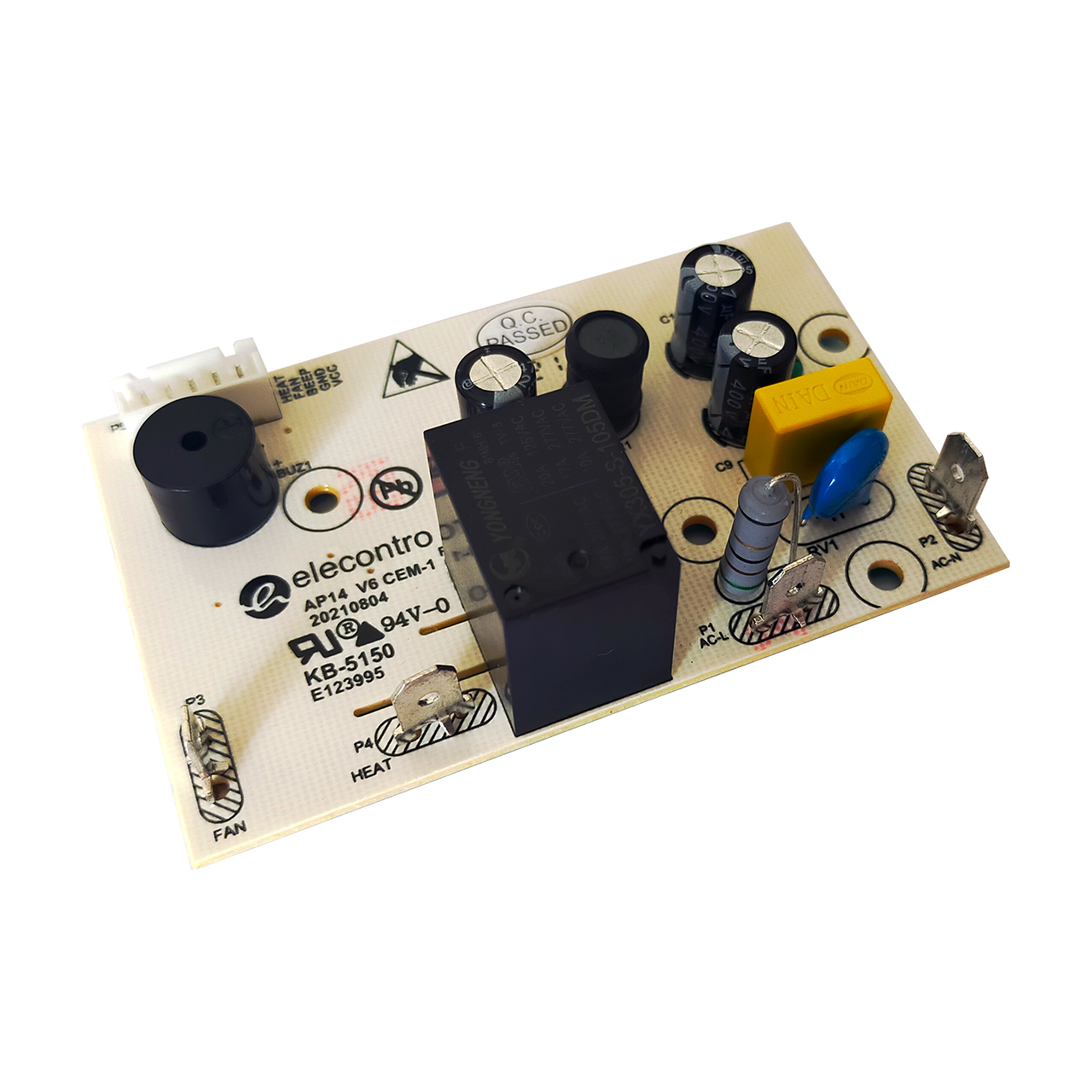

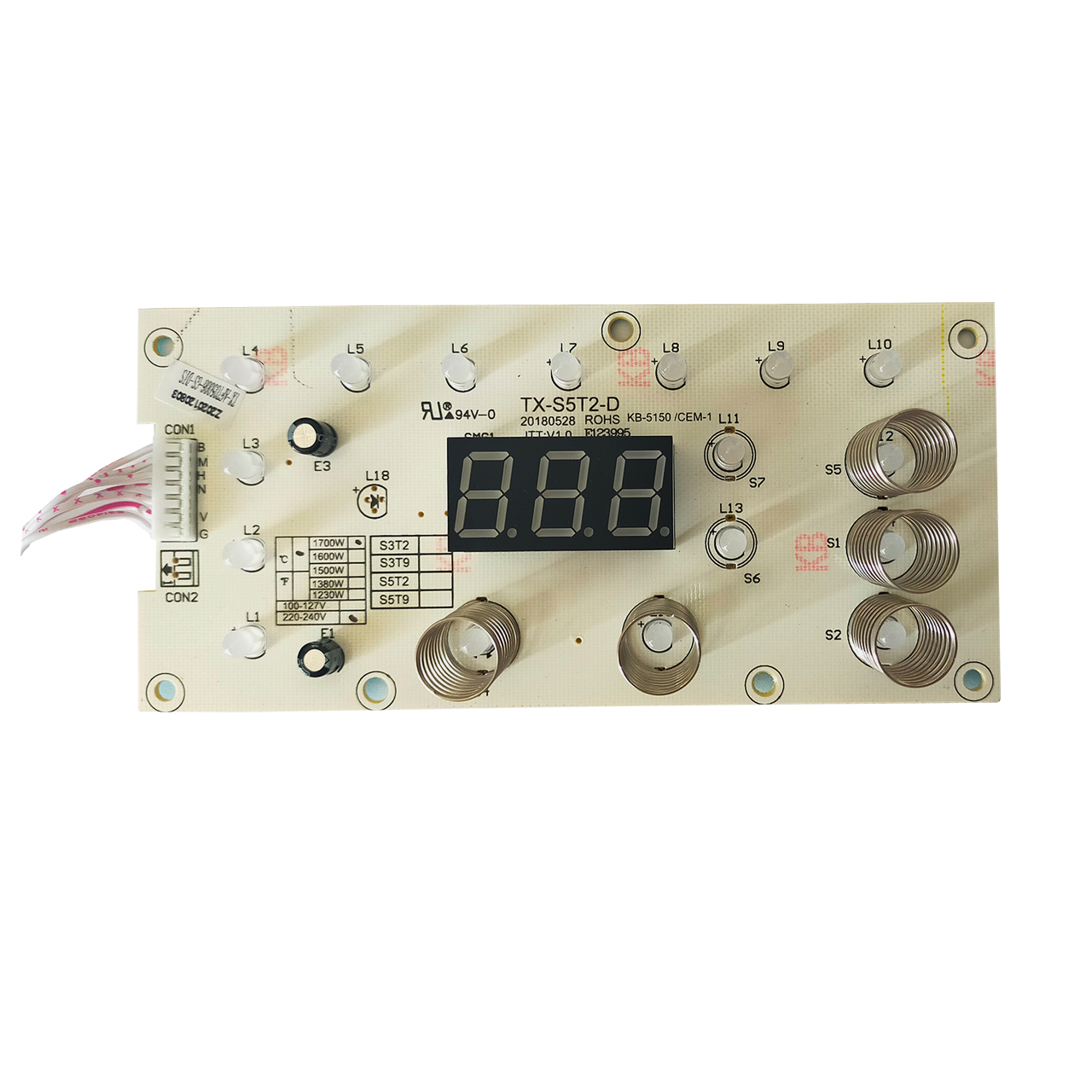

5 button touch air fryer control board PCB Assembly PCBA Design

Description

♦ Hidden display, High-end
♦ Full touching control, Stable and reliable
♦ Wide range input voltage
♦ Aging test with full load
♦ Low output ripple

♦ Precise temperature control

♦ Product Size:115*88mm (customizable)
♦ Button Number: 5pcs
♦ Menu number: 8pcs
♦Digital tube: 1pc

Input Feature	Input voltage range	AC 85~265V
	Frequency	50HZ/60HZ
	Efficiency	80%
Output Feature	Output voltage	12V/5V
	Output Power	MAX 4.5KW
	Ripple	≤40m Vp-p
	Standby Power	≤1W
Protection Feature	Overpower Protection	150-170% rated power, power will be restored after fault is removed
	Output short circuit protection	DC output in short circuit, eliminating short circuit and power will recover
Environmental Parameter	Working Temperature	-20℃∽+85℃
Safe and EMC standard	Safe standard	MEET- GB4943
	Withstand voltage	CE 1500V/5Ma/3sec
	Insulation resistance	I/P-O/P 500VDC/100MΩ hms

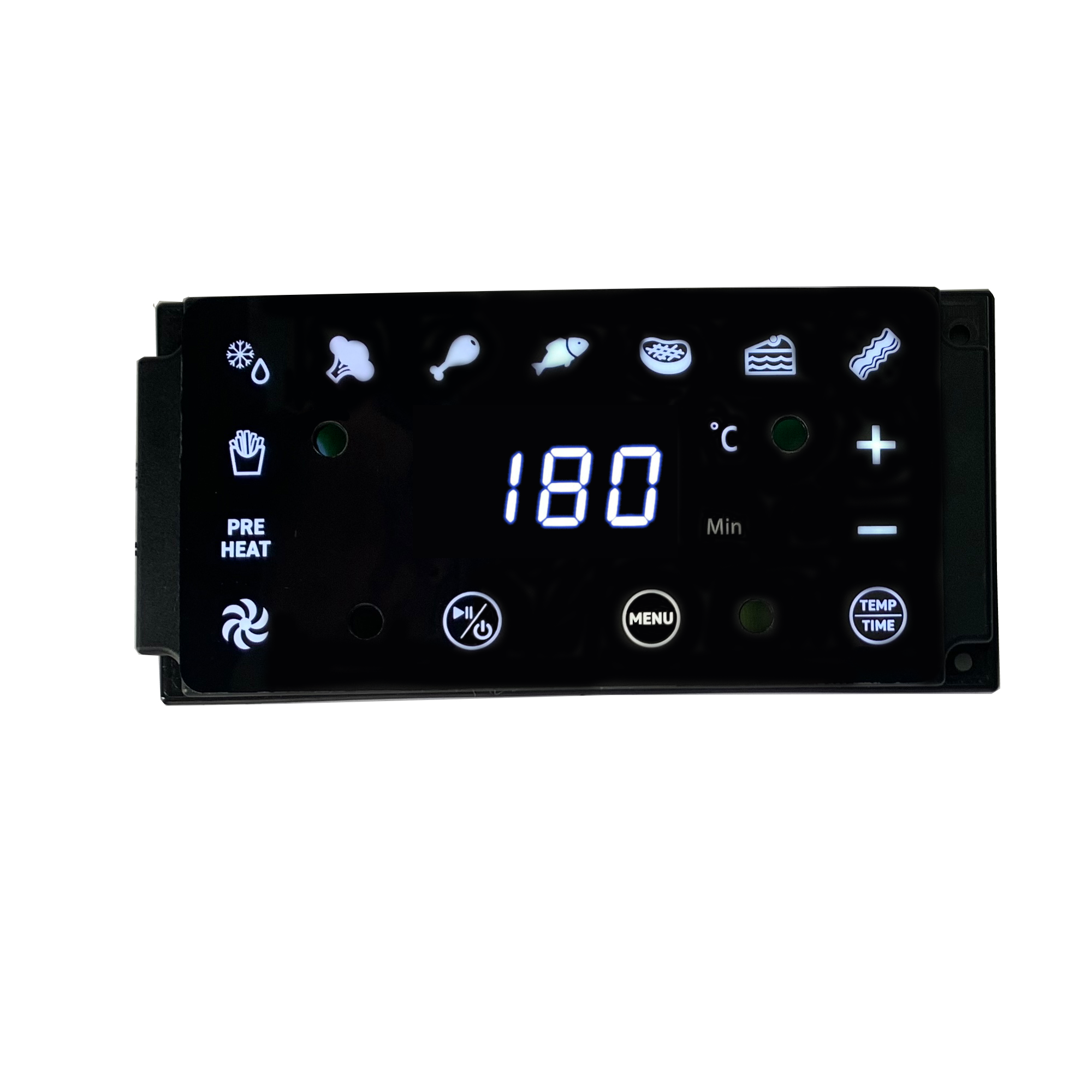

5 button touch air fryer control board
